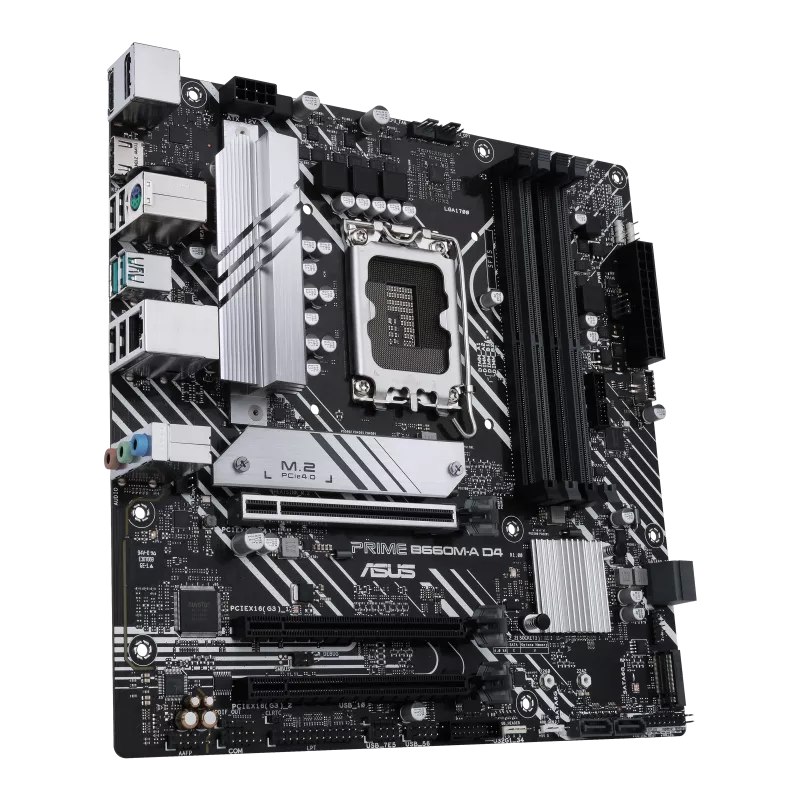

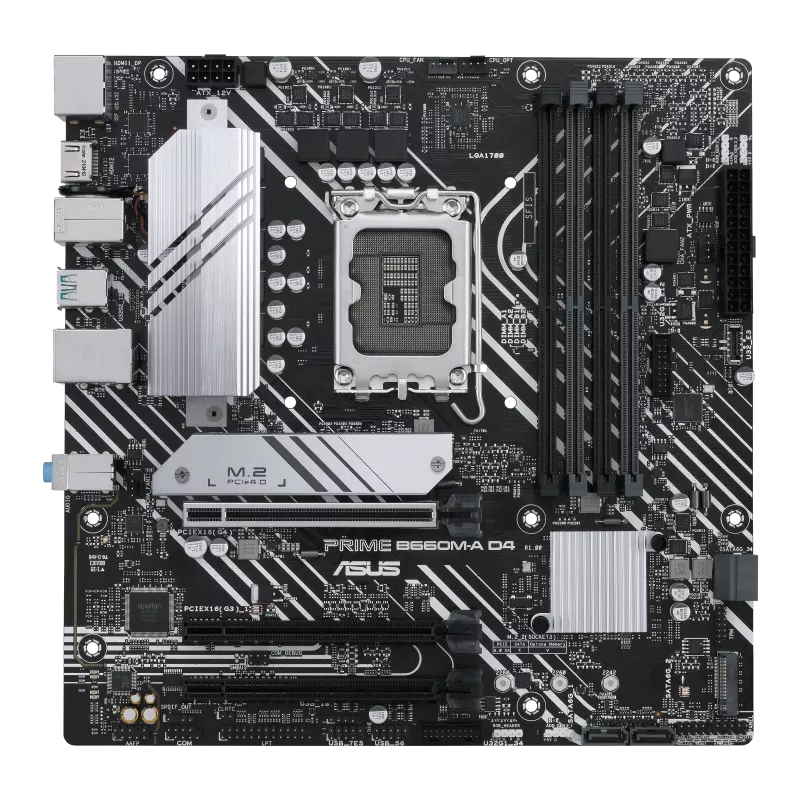

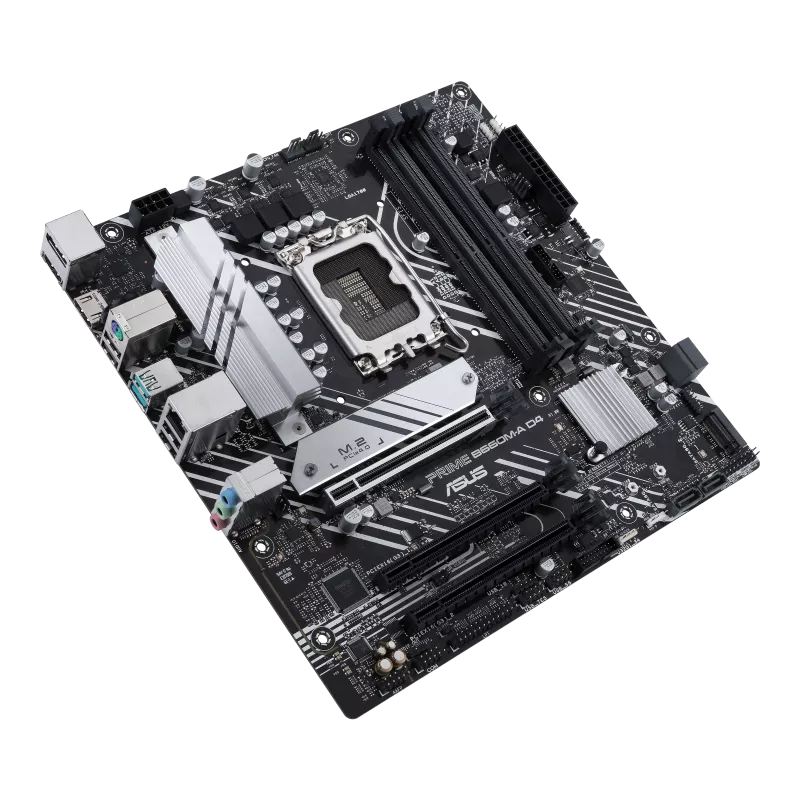

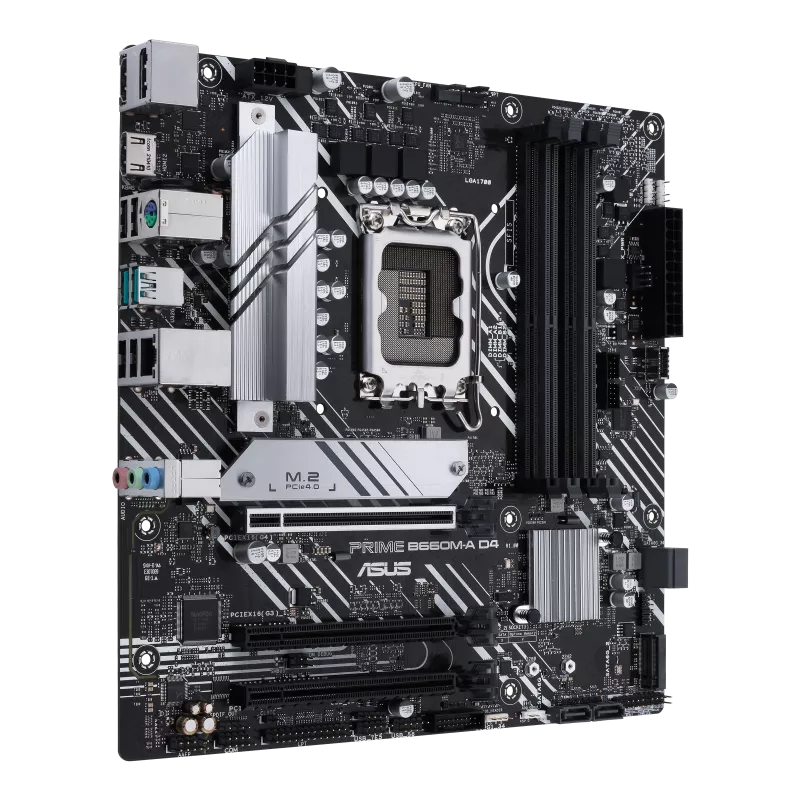

Asus Prime B660M-A D4-CSM
Carte mère mATX Intel® B660 (LGA 1700) avec PCIe 4.0, deux emplacements M.2, Ethernet Intel® 1 Gb, DP, 2 x HDMI®, USB 3.2 Gen 2 à l'arrière, USB 3.2 Gen 1 Type-C en façade, Aura Sync
- Socket Intel® LGA 1700 : compatible avec les processeurs Intel® de 14e, 13e et 12e génération
- Connectivité ultra-rapide : PCIe 4.0, Ethernet Intel® 1 Gb, USB 3.2 Gen 2 Type-A à l'arrière et USB 3.2 Gen 1 Type-A et Type-C® en façade
- ASUS OptiMem II : routage optimisé des pistes et des vias, ainsi qu'optimisation de la couche de masse pour préserver l'intégrité du signal et améliorer l'overclocking de la mémoire
- Refroidissement complet : dissipateur thermique VRM, dissipateur M.2, dissipateur PCH, connecteurs pour ventilateurs hybrides et Fan Xpert 2+
- ASUS Control Center Express (ACCE) pour simplifier la gestion des terminaux informatiques
| CPU |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B660 Chipset |
| Mémoire | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Carte graphique |
1 x DisplayPort |
| Slots d´extension |
Intel® 12th Gen Processors |
| Stockage |
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports |
| LAN | 1 x Intel® 1Gb Ethernet |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Ports USB | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port |

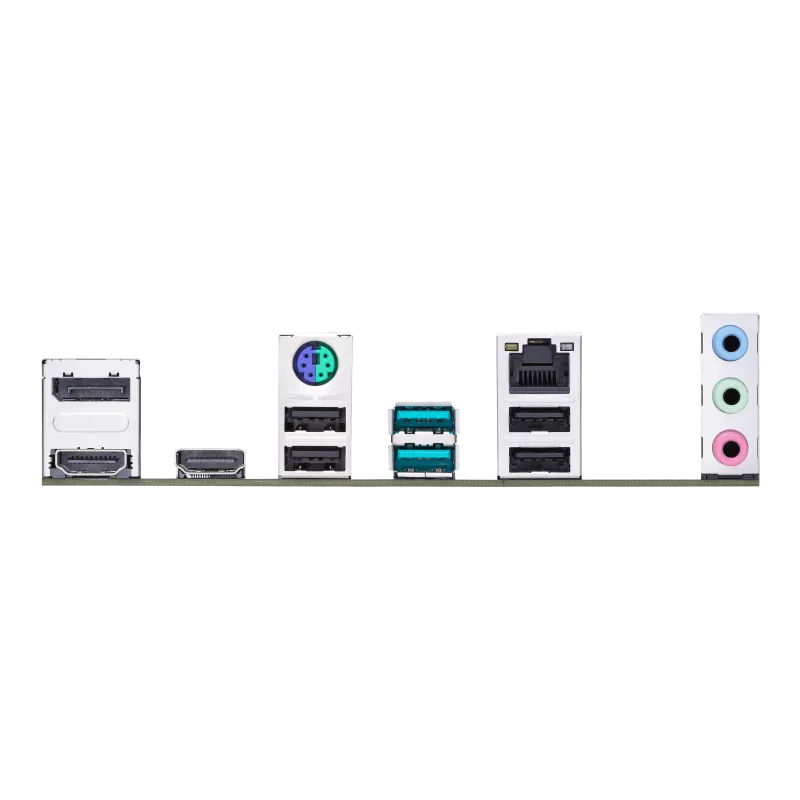

| Interface E/S arrière | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITM ports 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Interface E/S interne |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header supports 1 USB 2.0 port Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Facteur d´encombrement | microATX 24.4cm x 24.4cm |
