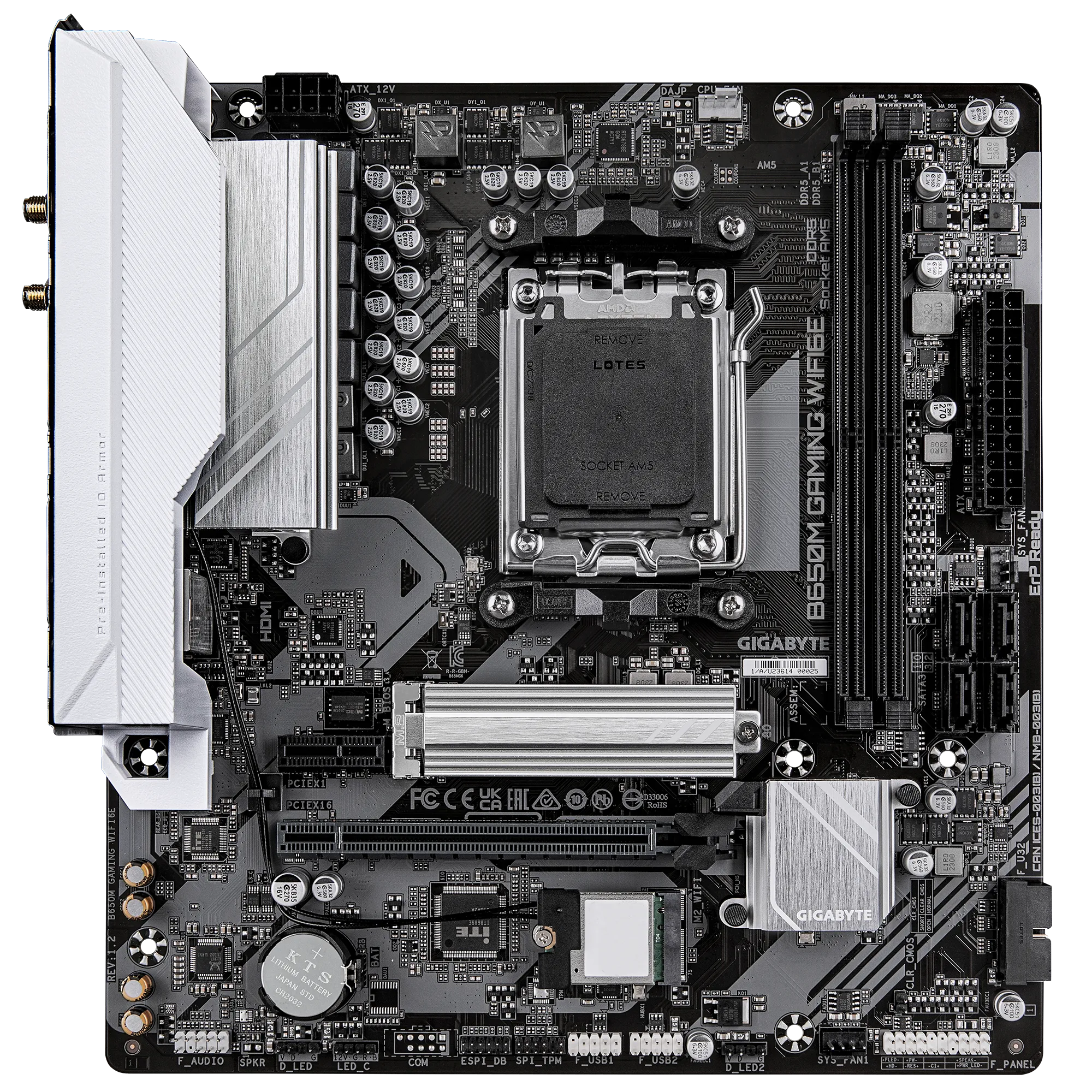

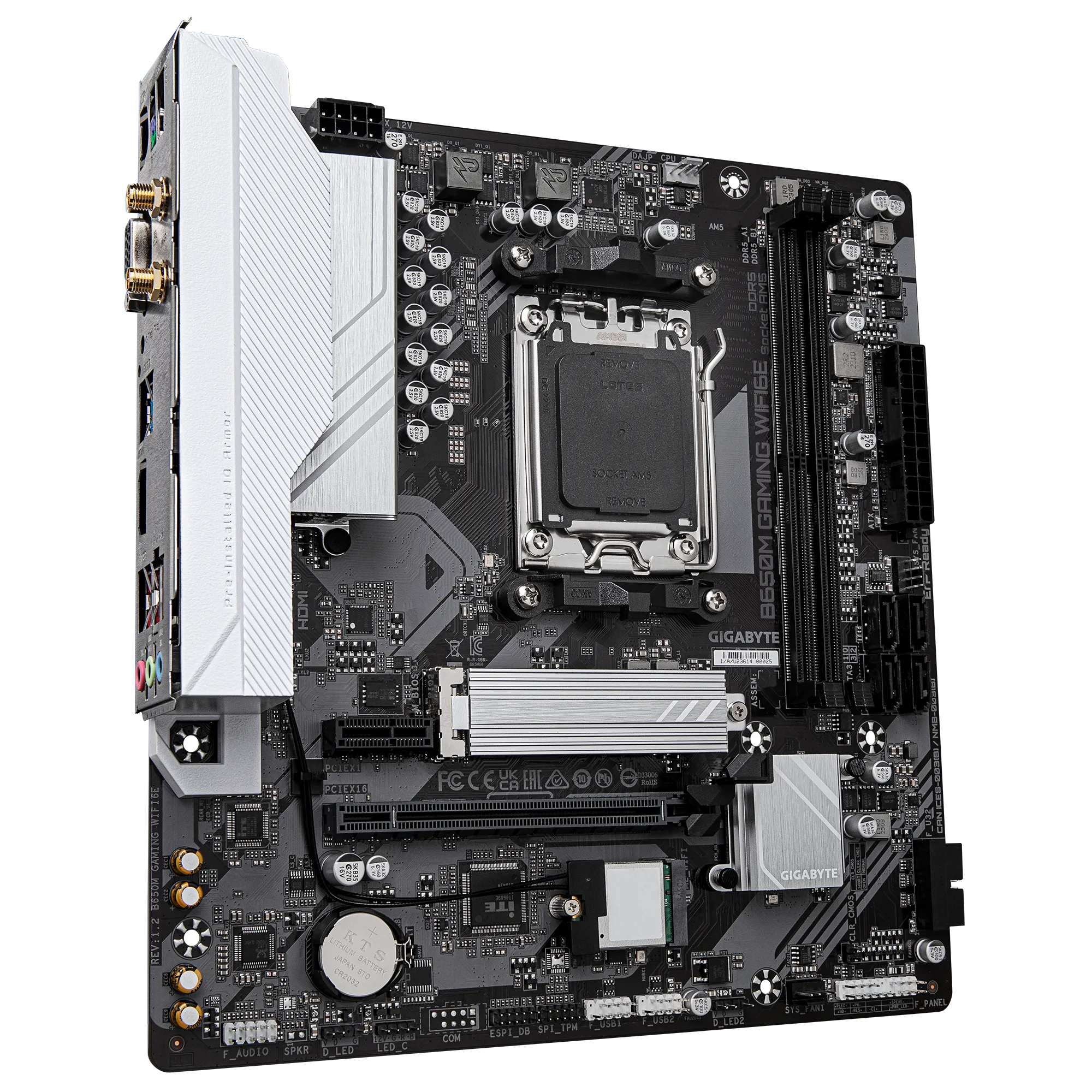

Gigabyte B650M Gaming Wifi6E
B650M GAMING WIFI6E
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：HDMI , D-sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| Processeur | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B650 |
| Mémoire | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Carte Graphique Intégrée | Integrated Graphics Processor with AMD Radeon™ Graphics support - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Réseau | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless |
| Port d'expansion | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Interface de Stockage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 2 x USB 2.0/1.1 ports available through the internal USB header |
| Connecteurs d'entrées/sorties internes | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |

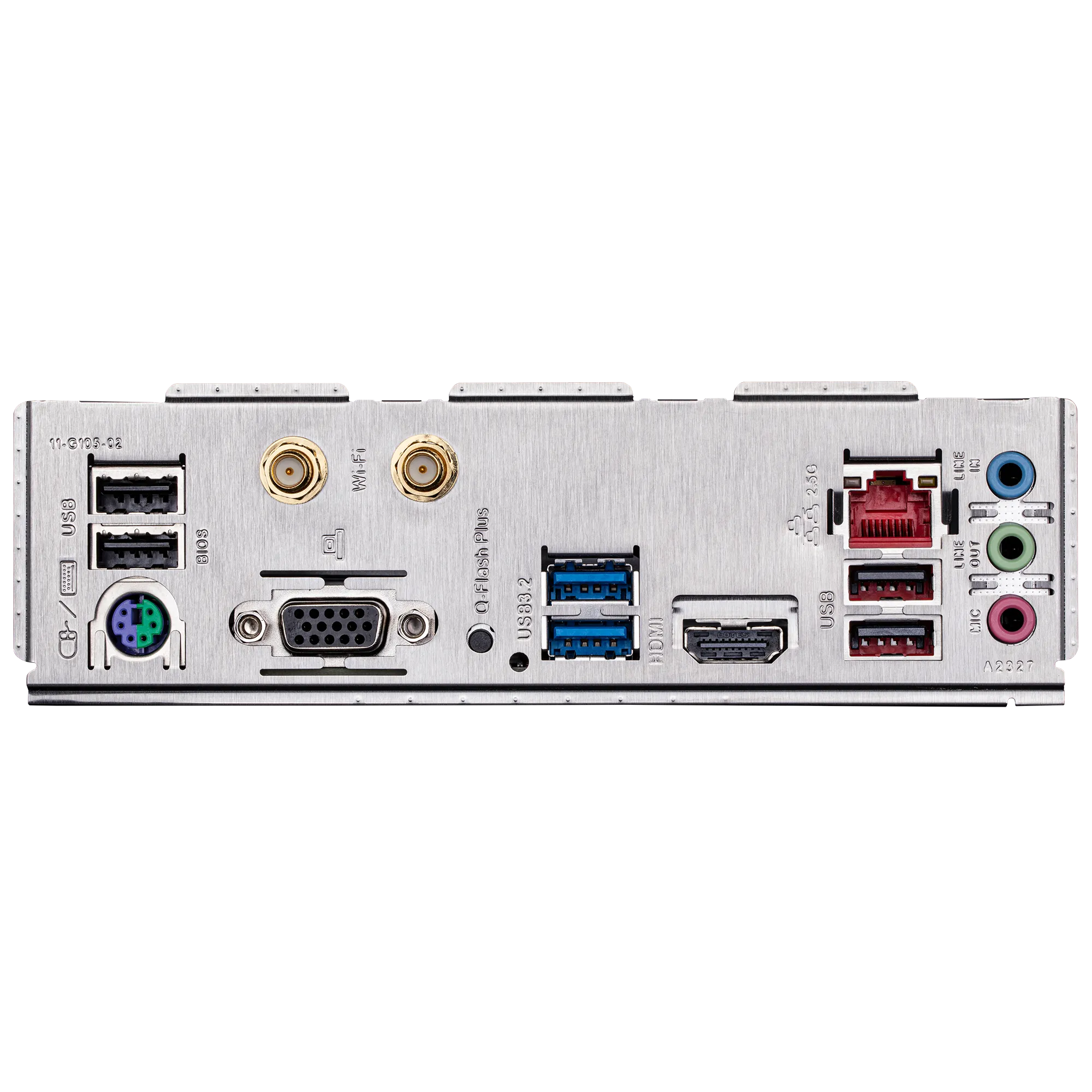

| Connecteur du Panneau Arrière | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port* 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port* 1 x RJ-45 port 3 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Dimensions | Micro ATX Form Factor; 24.4cm x 22.5cm |
